# Funzionalità della fotocamera di iGUIDE Planix

iGUIDE Planix è formato dai seguenti elementi:

<figure><img src="https://934972616-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGmip8LSsK4WoLzfZoJ3G%2Fuploads%2FHl2tqsVyzq9TlQluLEGg%2Fimage.png?alt=media&#x26;token=08a52b2a-36f6-4d59-8b74-f41371dd141d" alt=""><figcaption><p>Ricoh Theta Z1</p></figcaption></figure>

1. Ricoh Theta Z1

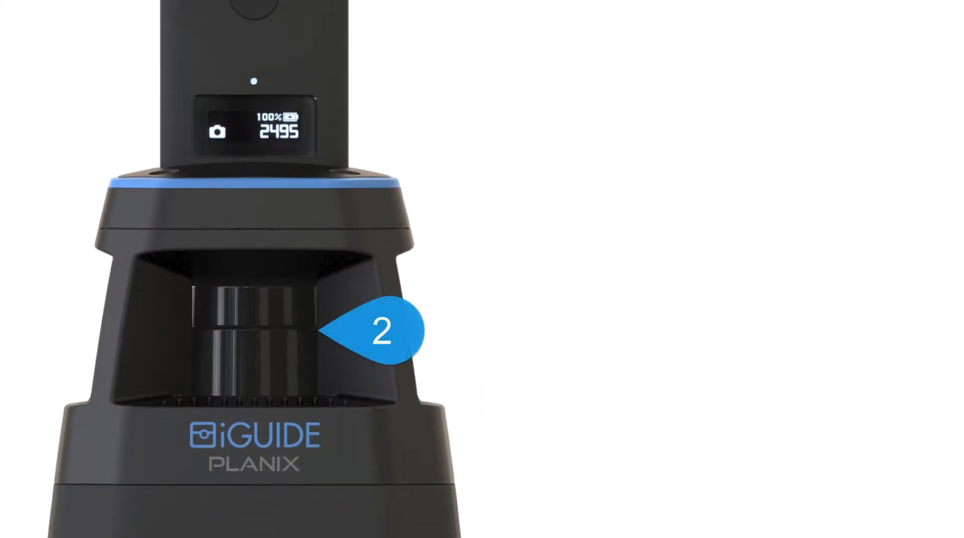

<figure><img src="https://934972616-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGmip8LSsK4WoLzfZoJ3G%2Fuploads%2FYA94WmAG1IfsQwVmUwEt%2Fimage.png?alt=media&#x26;token=08188989-021e-4de0-9b7a-53c712ac9897" alt=""><figcaption><p>LiDAR</p></figcaption></figure>

2. LiDAR

<figure><img src="https://934972616-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGmip8LSsK4WoLzfZoJ3G%2Fuploads%2F5TLpJ5WMBTXUUviY9k8u%2Fimage.png?alt=media&#x26;token=64897b45-eba7-4b7d-995e-37febf3a29e1" alt=""><figcaption><p>Porta USB</p></figcaption></figure>

3. Porta USB

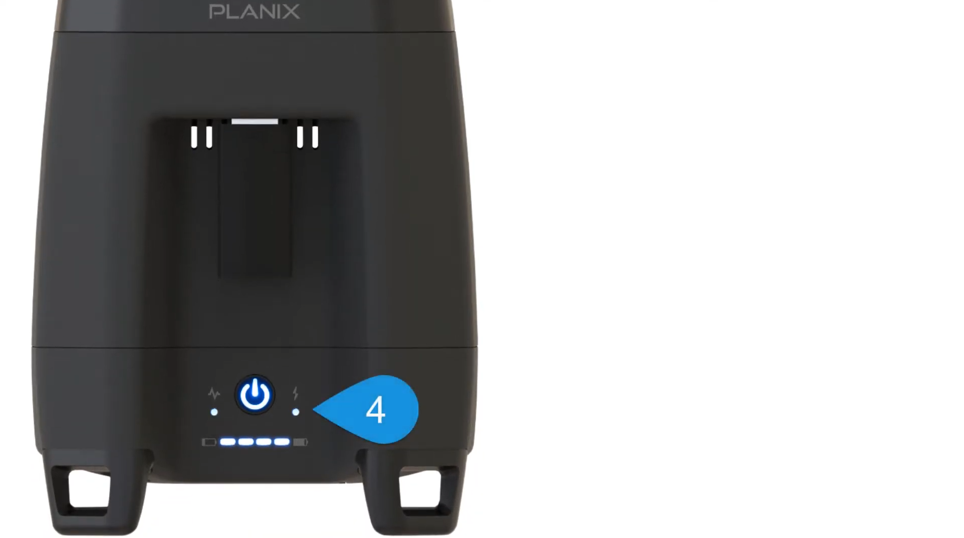

<figure><img src="https://934972616-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGmip8LSsK4WoLzfZoJ3G%2Fuploads%2FKB8kvGD4dbPOtQB11376%2Fimage.png?alt=media&#x26;token=73eee3f4-6aea-490a-8f68-2fd918a46eec" alt=""><figcaption><p>Pulsante di accensione &#x26; LED di stato del sistema</p></figcaption></figure>

4. Pulsante di accensione & LED di stato del sistema

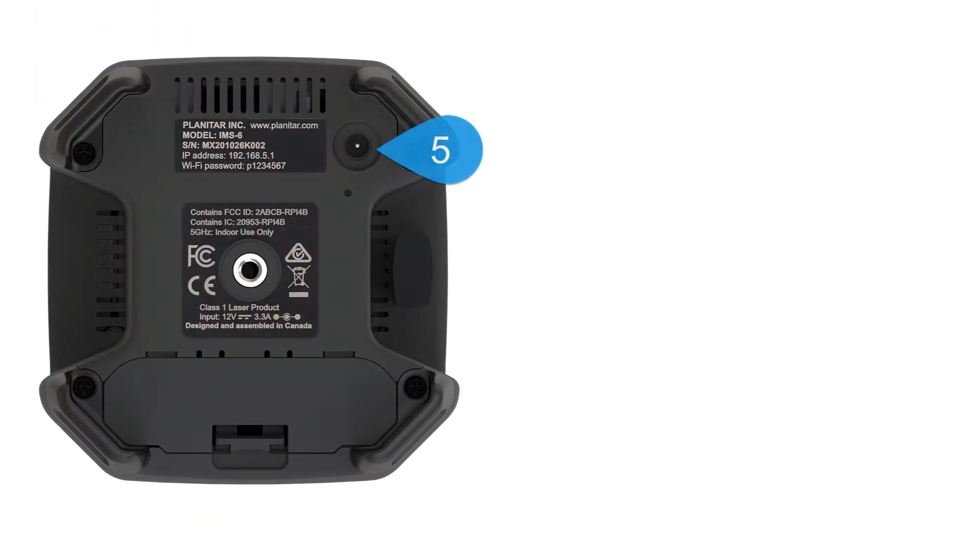

<figure><img src="https://934972616-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGmip8LSsK4WoLzfZoJ3G%2Fuploads%2F3v0vYCr1eaf4JLkI0UzV%2Fimage.png?alt=media&#x26;token=bab56a35-835f-463a-9a02-400fd363180b" alt=""><figcaption><p>Porta di ricarica</p></figcaption></figure>

5. Porta di ricarica

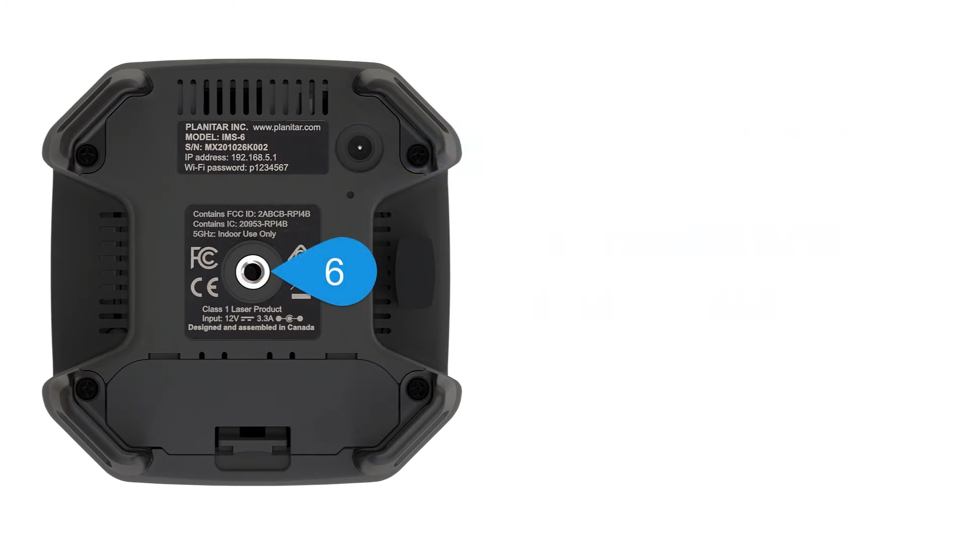

<figure><img src="https://934972616-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGmip8LSsK4WoLzfZoJ3G%2Fuploads%2Fqjjyb6T92N5FmeKfszvo%2Fimage.png?alt=media&#x26;token=0fe256e7-7c83-4299-a7f6-60ff25812cac" alt=""><figcaption><p>Foro per attacco al treppiede</p></figcaption></figure>

6. Foro per vite di montaggio da 1/4"

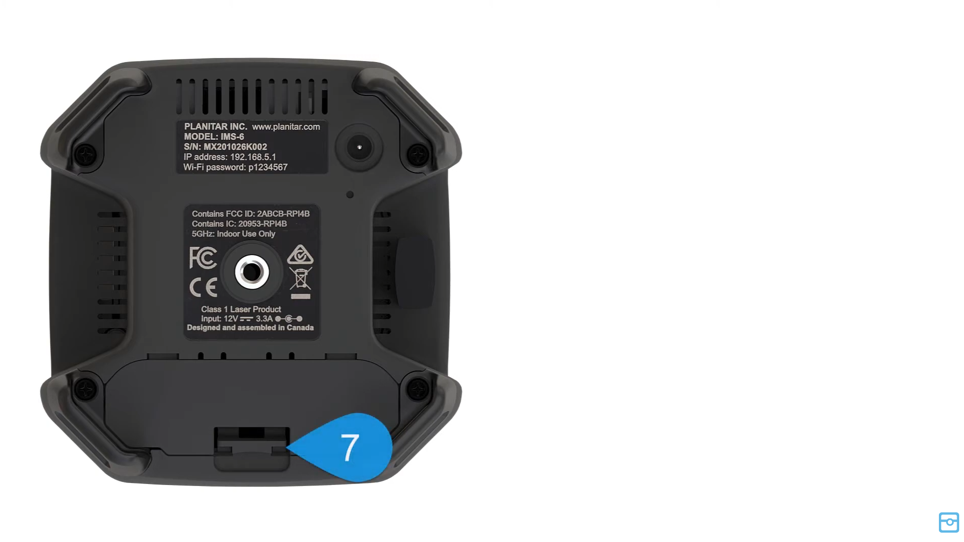

<figure><img src="https://934972616-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FGmip8LSsK4WoLzfZoJ3G%2Fuploads%2FaAQnDcqz0IIkL7XyX4wa%2Fimage.png?alt=media&#x26;token=82db50b9-86ec-46c4-91ba-8331c4864ee7" alt=""><figcaption><p>Accesso alla batteria</p></figcaption></figure>

7. Accesso alla batteria del sistema
